Product description

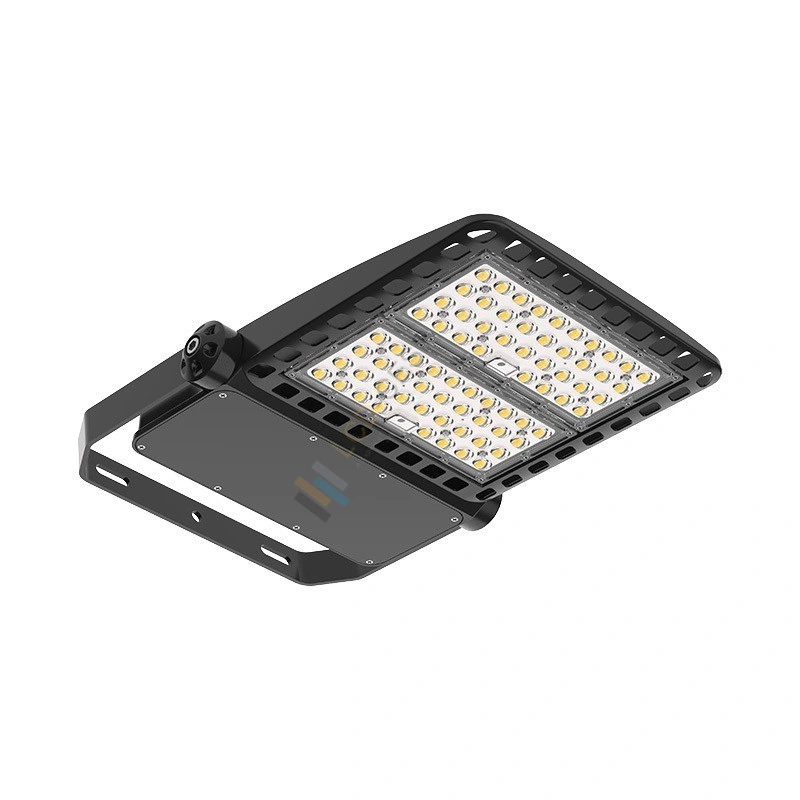

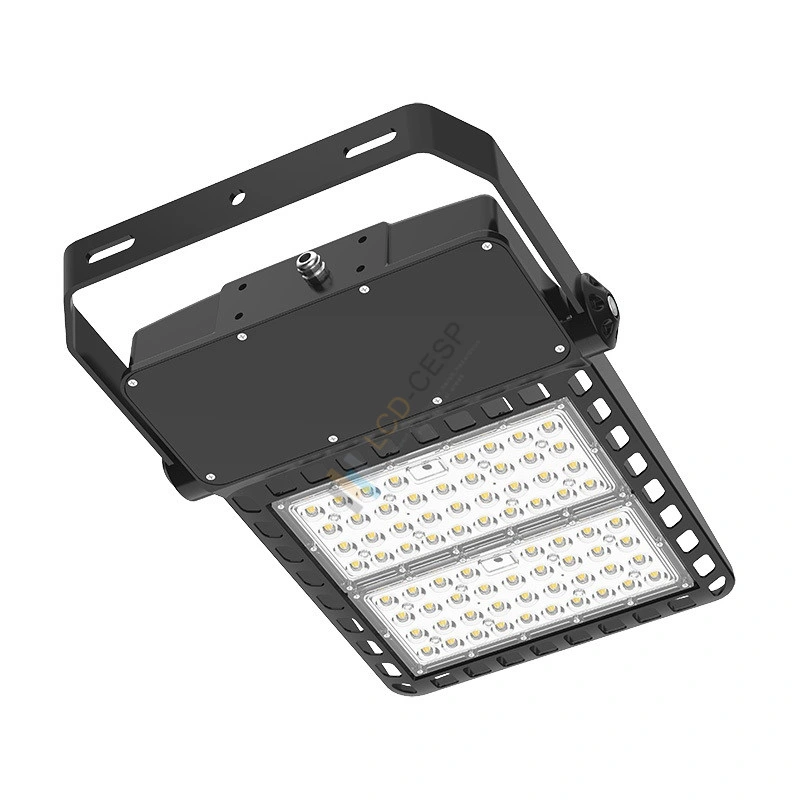

LED Shoebox flood Lights are commonly used to replace HPS or traditional shoebox lights and metal halides and can provide an energy savings of up to 65-80% with PLC dimmer system. These shoebox floodlights are safe & durable for outdoor use and protected from rainy, snowy, and weak jets of water, such as sprinklers. LED Shoebox flood Lights are perfect for stadiums, parks, billboards, places of worship and street light.

Product feature
1.Excellent heat disspation with professional and durable design
2.Easy installation and maintenance
3.No wires being exposed to the suny and rainy
4.Highly energy efficient - up to 140lm/w
5.Slim, state-of-the-art, low profile design maximizes wind resistance
6.IP66 rated, suitable for Wet Locations
7.5 Years warranty

The LCD LED Shoebox flood light and Street light brings a uniform lighting experience to large spaces. It was built for parking lots, downtown areas, neighborhoods, walkways and building grounds. Thanks to a variety of mounting options, available wattages and beam angels it can be configured to fit most requirements. Its new and efficient heat sink design allows for a professional and durable housing shape while ensuring excellent heat dissipation. The optional photocell daylight sensor provides a smart way of further increasing the energy savings while assuring that the right level of brightness is given as needed.

Options
- About 25 different beam angel options
- PLC dimmer / DALI / 0-10V dimmable available
- Photocell / Mootion sensor available
Area of application
- Parking lots & Streets & Sea port & factory- Walkways and building grounds
- Roadway and street and downtown areas and neighborhoods
Certificates
-American market: UL, DLC Premium, cUL, ETL-European market: CE (EMC, LVD, RoHS)

HIGH LIGHT
- [Super Bright & Energy Saving] - With super bright SMD5050 & 3030 LED sources are sure the whole lamp luminous efficiency up to 140lm/w. LED source, LUMILEDs SMD5050 & 3030 is super brightness with longer lifespan and less decay. 21000LM equivalent to 750W-800W HID. Professional different LEDiL brand lens such as 70x150°beam angle for Car parking a lot or street side. And with PLC dimmer system ensure energy saving 80%-85% than traditional lamp.
- [ Waterproof IP65/ IP66 & Easy installation and maintenance] - Waterproof IP66 is perfectly suitable for outdoor hash location application. No matter how it is sunny, rainy, snowy or stormy it can works well properly. This LCD LED series parking a lot lighting fixtures team with slip fitter mount etc 5 differents fit diameter 60mm / 2.36' pole mounting. Really easy to install on round pole. The light is 180 degree adjustable, which can be adjusted to best angle for your aiming area.
- [ Professionla heat-sink fin heat Dissipation design ] With good therml management fin design for heat-dissipation, which ensure the fin dissipation area is large touching for air at the most possible and cooling down faster. This perfect thermal management makes sure the LED chip and driver under a cool condition operation. Extend lamp's lifespan. Lifespan more than 60,000 hours, that's means 16 years for 10 hours/day.
- [ LEDiL Brand Lens & Free DIALux layout Service ] With LEDiL brand lens, our lamps have a exact Range & precision right for increased wellbeing and safety, optimised functionality and improved sustainability with energy efficiency. And you just get us the dimension of your parking lot or street or etc..., the pole height and the requirement of illumination. Then we will use DIALUx design a perfect lighting solution for you. This design will tell you how much lights and what power needed.
- [ Certification & Warranty ] Approved by ETL, DLC (Design Lights Consortium for independent verification), CE, FCC and RoHs certification that ensures better quality, safety, and reliability. The package comes with safety rope, which provide double safety. We also promise 5 years' free maintenance if there is any quality problem.

Products dimension

Light distribution curve


Specification

Light distribution curve


Specification
Standard lumen (130lm~140lm/W) | |||||||
Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
G6F-A1-80 | 80 | AC100~277V 50~60Hz | 140±5 | 11200±5% | Type 2 Type 3 Type 4 Type 5 etc | 140PCS SMD 3030 | >70Ra |
G6F-A1-100 | 100 | 140±5 | 14000±5% | 140PCS SMD 3030 | |||
G6F-A1-120 | 120 | 140±5 | 16000±5% | 140PCS SMD 3030 | |||
G6F-A1-150 | 150 | 140±5 | 20300±5% | 140PCS SMD 3030 | |||
G6F-A1-200 | 200 | 140±5 | 28000±5% | 280PCS SMD 3030 | |||
G6F-A1-250 | 250 | 140±5 | 35000±5% | 420PCS SMD 3030 | |||
G6F-A1-300 | 300 | 140±5 | 41000±5% | 420PCS SMD 3030 |
Electrical data | Photometrical data | ||
Operating frequency | 50-63HZ | Available light colors | warm white;natural white;daylight white |
Type of current | AC100-277V / 12V 24V 32V | Available color temperatures | 3000K;4000K;5700K;6500K |
Power factor λ | >0.95 | Color rendering index Ra | >70 |
Efficiency in % | >90% | Standard deviation of color matching | <3 |
Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <27 |
Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | Type 2/Type 3/Type 4/Type 5 etc etc |
Standards Certification | Temperatures operating conditions | ||
Type of protection | IP65 / IP66 | Heatsink temperature | -30~+75ºC |
SPD Tested dielectric strength | 3-4 KVac | Ambient temperature | -30~+55ºC |
Safety features | Open circuit protection; short circuit protection ; overvoltage protection | Storage temperature | -40~+80ºC |
Certificates | American market: UL, DLC Premium, cUL European market: TUV, GS, CB, D Mark, CE Australian market: SAA, CTick,RMC | ||
Energy efficiency class | A+ A++ |
Lifespan | Features/Capabilities and additional product data | ||
Rated nominal Lifetime | 5 Years | Base/Socket | Directly wired |
Switching cycles | 100,000 times | Dimmable | PLC dimmer /0-10V dimmable / DALI dimmable |
Lumen maintenance at e.o.l. | 70-80% |
Packing Information | |||||
Model | Dimension(MM) | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
G6F-A1-80W/100W/120W/150W | 426*378*75 | 59*36*13.5 | 1PCS | 5.5 | 8.6 |
G6F-A1-200W | 546*378*75 | 71*36*13.5 | 1PCS | 6.8 | 9.8 |
G6F-A1-250W/300W | 671*378*75 | 83*36*13.5 | 1PCS | 9.6 | 13.8 |
Mounnting Arms Options
