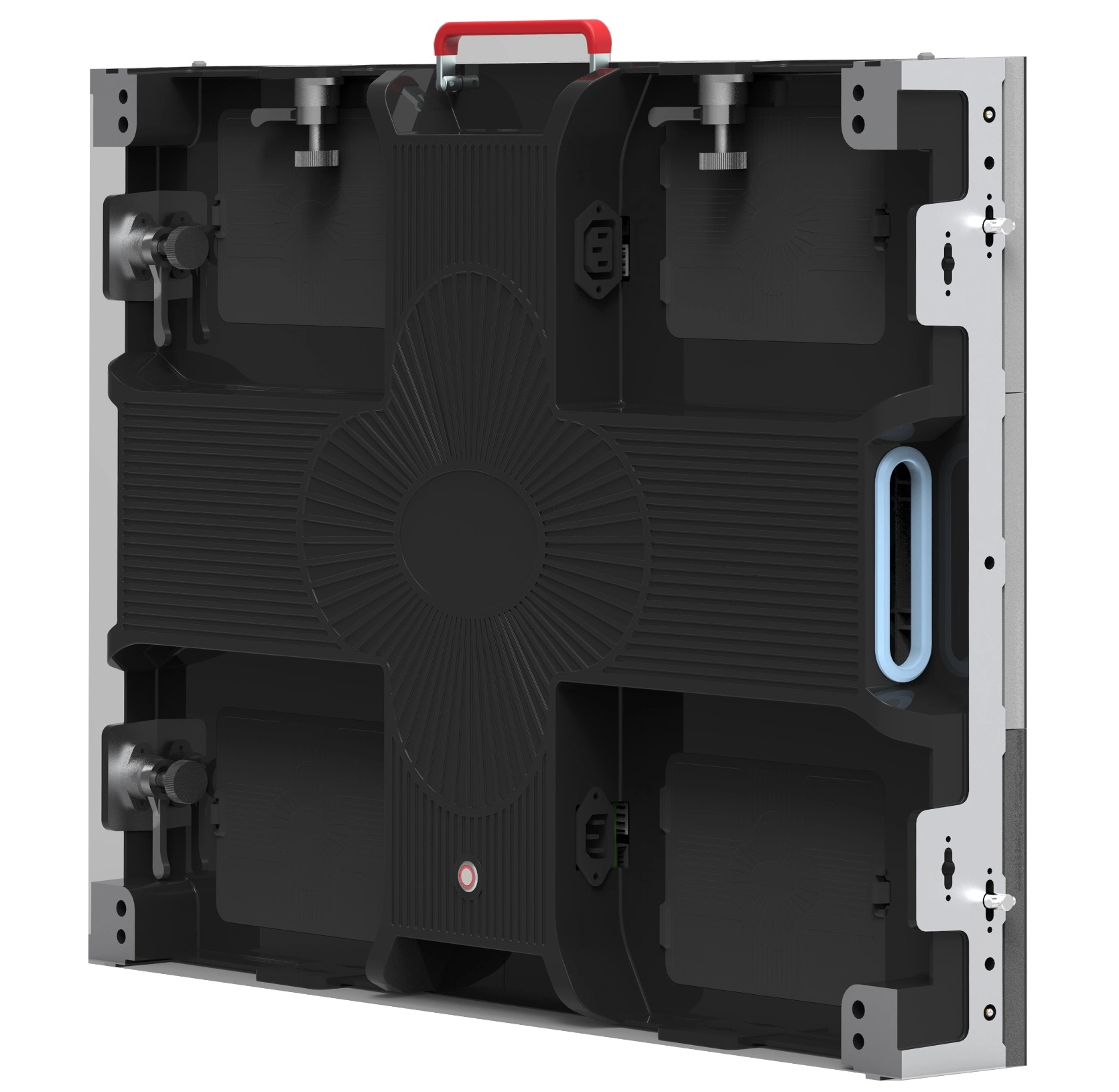

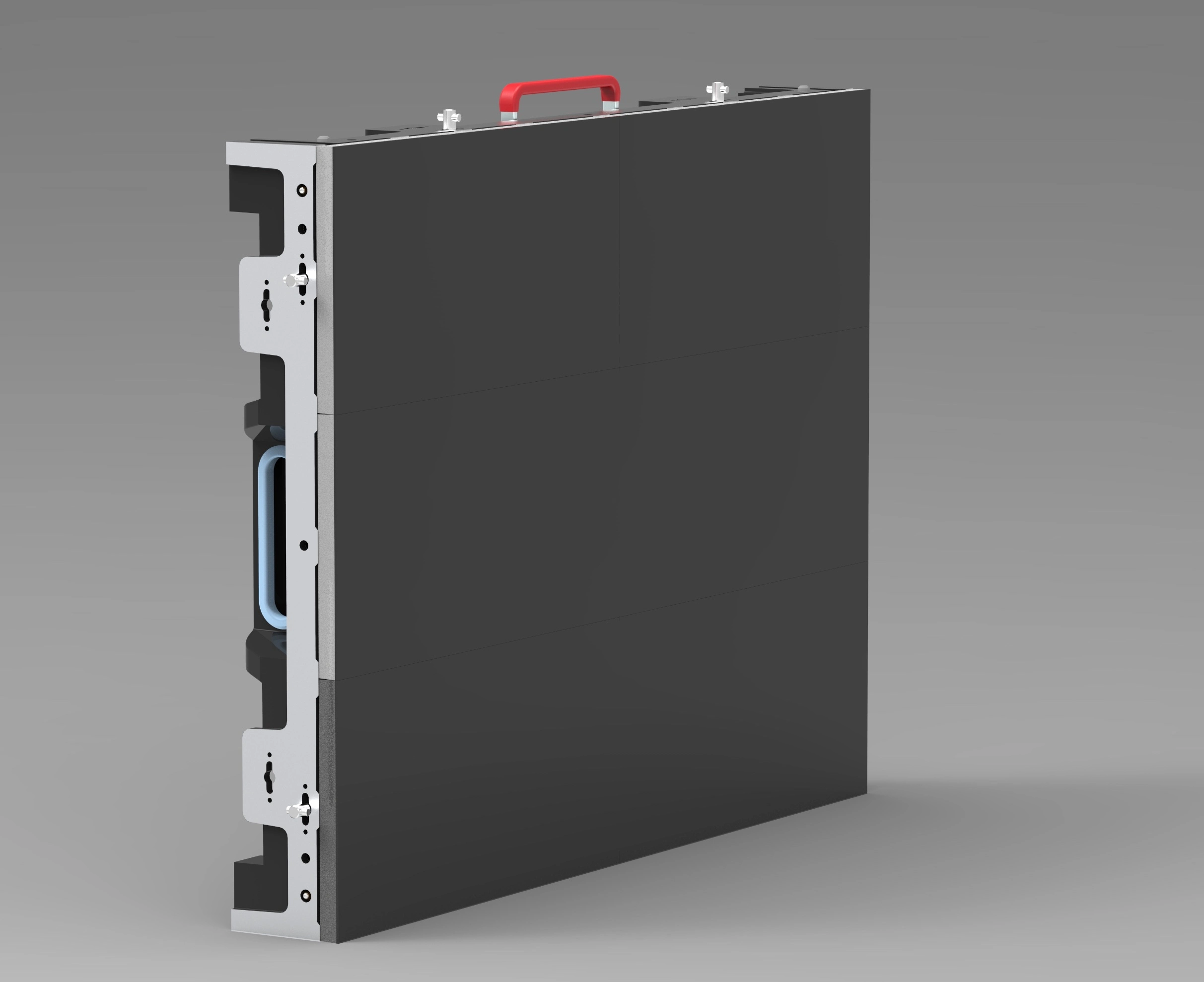

P1.538mm Ultral HD Indoor Small Pixel Pitch LED Display Screen
Feature
Products Feature
1.· Durable, reliable, precisely made Aluminum die-casting, fanless design Small expansion coefficient
2. Spring locks connect the cabinets vertically,
3. Well-performing High contrast louver design with rain channel,Light tight design, no blocks on the image
BST processing with Radiant Calibration System
4. Macromolecular flexible mask with glareless surface and better contrast ratio;
5. Signal and power indicator & reset button well shows the working condition
of the whole screen;
6. Fast spring locks connect the cabinets horizontally, only 10 seconds for per
cabinet;
7. Light-weight 4.6kg/pc. for panel with light-weight sub-frame structure design
8. Nanotechnology and unique positioning system, making the installation and
dismantlement in one step;
9. BST robust electronics design
Specification
This series can be P1.2,P1.5,P1.6,P1.8, it is on promotion. WELCOME to enquire, We will send you quotation in 1 day! We have the most competitive prices, please compare and welcome to visit our factory in Shenzhen!
Why choose BST?
Feature
Products Feature
1.· Durable, reliable, precisely made Aluminum die-casting, fanless design Small expansion coefficient
2. Spring locks connect the cabinets vertically,
3. Well-performing High contrast louver design with rain channel,Light tight design, no blocks on the image
BST processing with Radiant Calibration System
4. Macromolecular flexible mask with glareless surface and better contrast ratio;
5. Signal and power indicator & reset button well shows the working condition
of the whole screen;
6. Fast spring locks connect the cabinets horizontally, only 10 seconds for per
cabinet;
7. Light-weight 4.6kg/pc. for panel with light-weight sub-frame structure design
8. Nanotechnology and unique positioning system, making the installation and
dismantlement in one step;
9. BST robust electronics design
Specification
| Model | 1.25mm | 1.5mm | 1.6mm | 1.8mm |
| Pixel Pitch | 1.25mm | 1.53mm | 1.66mm | 1.839mm |
| Unit Size | 640mmX480mm | 640mmX480mm | 640mmX480mm | 640mmX480mm |
| LED Type | Nation star SMD1010 | Nation star SMD1010 | Nation star SMD1010 | Nation star SMD1010 |
| Pixel / Unit | 512*384 | 416*312 | 384*288 | 348*261 |
| Unit Weight | 4.6Kg | 4.6Kg | 4.6kg | 4.6kg |
| Viewing Angle | H140 degree V140 degree | H140 degree V140 degree | H140 degree V140 degree | H140 degree V140 degree |
| Application | Storage-40°~60°C,Working-20°~50° C, | Storage-40°~60° C, working-20°~50° C, | Storage-40~60° C, Working-20~50° C | Storage-40~60° C, Working-20~50° C |
| Protection Level | For indoor use only | For indoor use only | For indoor use only | For indoor use only |
| Power Consumption | 700W/sqm | 700W/sqm | 750W/sqm | 700W/sqm |
| Driving | 1/64 scan | 1/52 scan | 1/64 Scan | 1/58 Scan |
| Frame Refresh | ≥ 60Hz | ≥ 60Hz | ≥ 60Hz | ≥ 60Hz |
| Refresh Rate | >1500Hz | >1500Hz | >1500Hz | >1500Hz |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Brightness | 800nits | 800nits | 800nits | 800nits |
| Power Supply | AC110/240V, 50~60Hz | AC110/240V, 50~60Hz | AC110/240V, 50~60Hz | AC110/240V, 50~60Hz |
| MTBF | ≥ 1, 000 Hours | ≥ 1, 000 Hours | ≥ 1, 000 Hours | ≥ 1, 000 Hours |
| Life Span | ≥100,000Hours | ≥100, 000 Hours | ≥ 100, 000 Hours | ≥ 100, 000 Hours |
| Pixel Failure | < 0.0003 | < 0.0003 | < 0.0003 | < 0.0003 |
This series can be P1.2,P1.5,P1.6,P1.8, it is on promotion. WELCOME to enquire, We will send you quotation in 1 day! We have the most competitive prices, please compare and welcome to visit our factory in Shenzhen!
Why choose BST?
- BST is a professional manufacturer of LED display screens over 8 years. We have strong R&D to ensure high end products with user-friendly design .
- The prices are very competitive due to our large-scale procurement of raw material. We can help you to win more orders if you are distributors.End users will also be satisfied with our quality and price.
- We have CE, FCC and Rohs certificates. Our products are exported over 85 countries .We have rich experience in handling all possible problems when you import goods from China .
- We have a wide variety of products for you to choose from .All products are strictly tested before release to market and we test every LED screen 72 hours before delivery.
- Our sales are well trained to offer professional advice on your specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
- We offer 2-3 years warranty and life time maintenance .Even when warranty time expires , we only charge material costs
